Hentenna Applications
Hentenna Applications

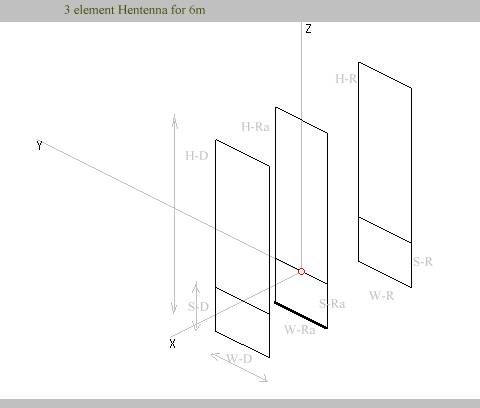

3 element Hentenna for 6m


Front gain : 8.56dBd
F/B ratio : 20.0
Radiation angle : Lower than topical 6 element Yagi.
  * This antenna performance is similar to 5.2m boom 6 element Yagi.
  * Check the pictures below for more information.
Director
Radiator
Reflector
Height (H)
2.94m
2.99m
3.06m
Width (W)
1.00 m
1.00m
1.00m
Position of Loop separator (S)
0.67m
0.68m
0.69m
Element Position
D-Ra: 1.11m
 -
Ra-R: 1.57m

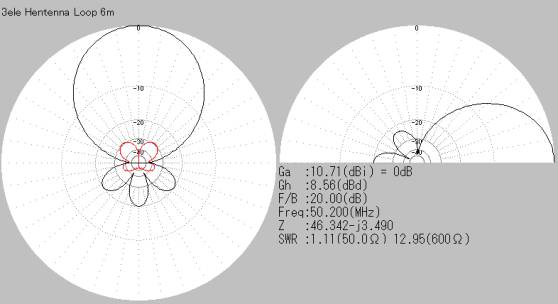

(MMANA Antenna Simulation Software by JE3HHT)


Hentenna measures

Hentenna has 3 important measures. They are H: height, W: width and S: (See right picture for the reference).

 Following list is these standard measures for each armature bands.
 For the adjustment, please refer to top page of Hentenna but the only thing you have to do is adjusting "S" measure moving a,b points.

80m
40m
30m
20m
17m
15m
12m
10m
6m
2m
Freq.(MHz)
3.550
7.050
10.10
14.20
18.15
21.25
24.95
28.50
50.20
144.2
Wavelength (m)
84.51
42.55
29.70
21.13
16.53
14.12
12.02
10.53
5.976
2.083
Height: H (m)
44.25
21.28
14.85
10.56
8.26
7.06
6.01
5.26
3.00
1.04
Width : W (m)
14.08
7.09
4.95
3.52
2.75
2.35
2.00
1.75
1.00
0.35
Position of Loop separator : S (m)
8.45
4.26
2.97
2.11
1.65
1.41
1.20
1.05
0.60
0.21

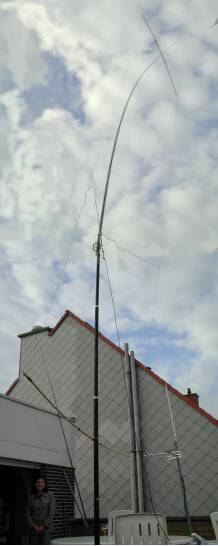

Sample Picture of Hentenna for 15m band by ON6TZ
(  H:6.72 m / W : 2.24m /  S : 1.34m )
